Quiet Room
Starting from
$XXX
QR-CA
$1,630 NZD
$1,559 AUD
$1,549 CAD
$1,499 USD
$1,577 NZD
$1,508 AUD
$1,499 CAD
$1,449 USD
$643 NZD
$615 AUD
$599 CAD
$579 USD
$523 NZD
$501 AUD
$499 CAD
$479 USD
$1,849 NZD
$1,949 AUD
$1,849 CAD
$1,679 USD
$1,699 NZD
$1,750 AUD
$1,749 CAD
$1,599 USD
$1,799 NZD
$1,799 AUD
$1,649 CAD
$1,499 USD
$8,750 NZD
$8,199 AUD
$7,999 CAD
$6,500 USD
$73,665 NZD
$70,452 AUD
$66,929 CAD
$63,599 USD
$56,280 NZD
$53,833 AUD
$51,149 CAD
$48,599 USD
$46,898 NZD
$44,859 AUD
$42,599 CAD
$40,499 USD
$40,633 NZD
$38,866 AUD
$36,949 CAD
$35,099 USD
$37,861 NZD
$36,215 AUD
$34,399 CAD
$32,699 USD
$31,045 NZD
$29,693 AUD
$28,199 CAD
$26,799 USD
$16,618 NZD
$15,895 AUD
$15,099 CAD
$14,349 USD
$28,100 NZD
$26,879 AUD
$25,549 CAD
$24,299 USD
$22,417 NZD
$21,443 AUD
$20,399 CAD
$19,399 USD
$13,499 NZD
$13,999 AUD
$13,299 CAD
$12,649 USD

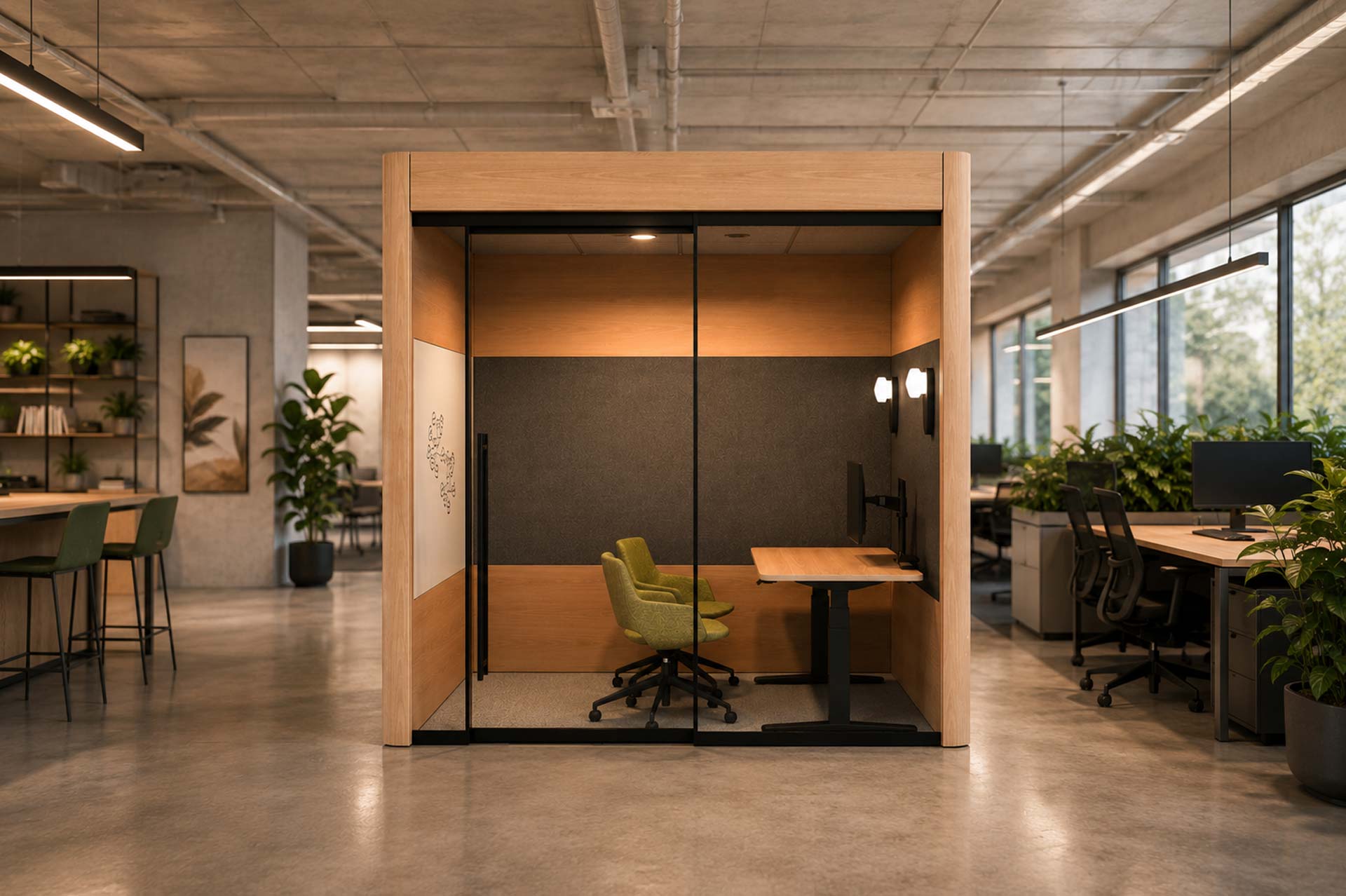

A room for 1-2 people to zone in and get things done. Ideal for private conversations, video calls, and virtual collaboration.
Lead Times
Standard: 5-6 Weeks
Custom: 8 Weeks
Specifications
Dimensions
6' x 8' x 9'
Materials
Material Specifications
- XFrame panels made from untreated structurally rated and plantation harvested Canadian spruce/fir timbers formed into plywood meeting CSA O151-17 (R2022).
- Phenol formaldehyde resins used in production of plywood meets emission standards equivalent to E0.
- Laminate and veneer linings subject to specification. Typically ¾ inch Tafisa Decorative Panels (TFL) formed from 100% recycled and recovered wood feedstock (Particle Board). Laminate Decorative Panels tested to ASTM E-83 meet Class C as standard.
- 12mm (1/2 inch) acoustic finishes and extent subject to project specification. Typically Turf, Hush or Autex PET fixed to substrate using ReadyClip mounting hardware. PET Panels tested to ASTM E-83 meet Class A requirements.
- FSC / Declare / Country of Origin Specification available on request at time or order and subject to availability.
- Cavity insulation subject to project specification. Typically UltraTouch® R13 Recycled Denim Insulation.
Glazed Specifications
- Subject to project budget and design requirements.
- Typically 12mm (1/2 inch) tempered glazing in an aluminium suite of the clients choosing.
- Option for timber framed windows / doors on request to matching glass thickness and sizing.
Standard Specifications
File Downloads
Quiet Room
Carbon Breakdown
Total calculated carbon related emissions
Frame Component:
Lining Component:
Hardware Component:
Insulation Component:
