Classic Booth

Classic Booth.

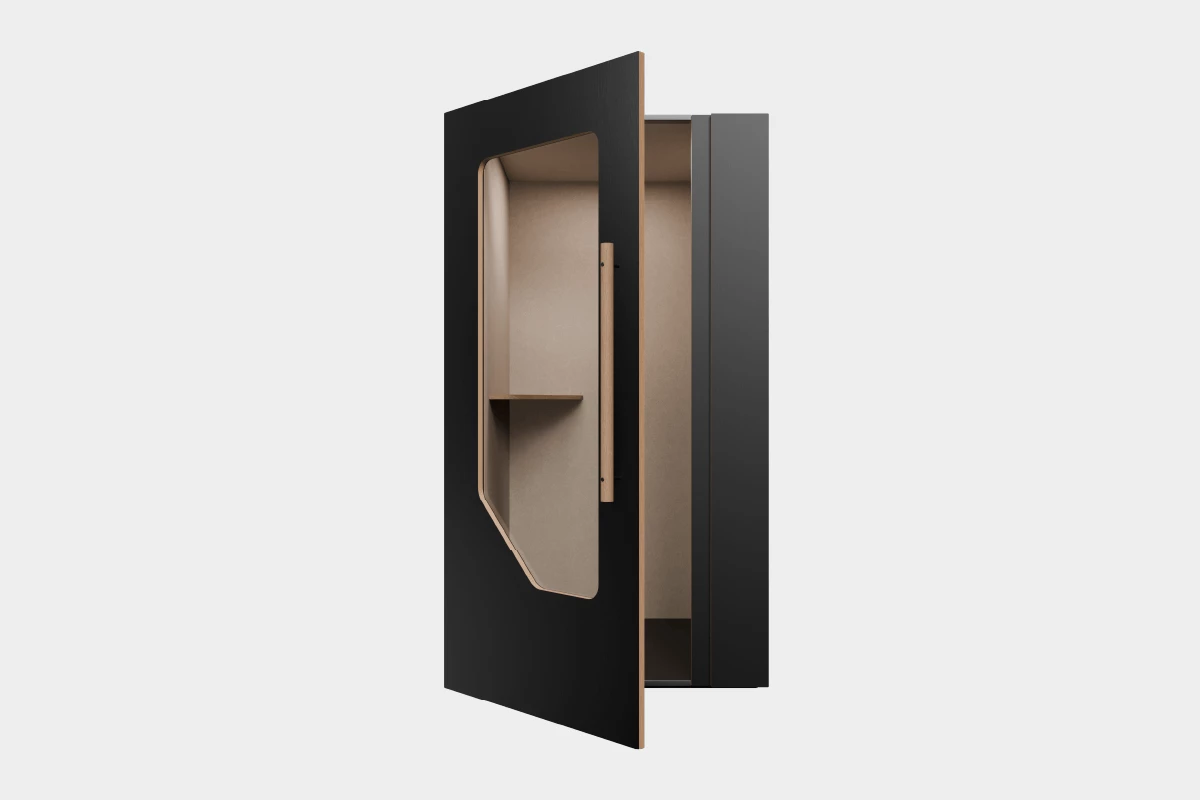

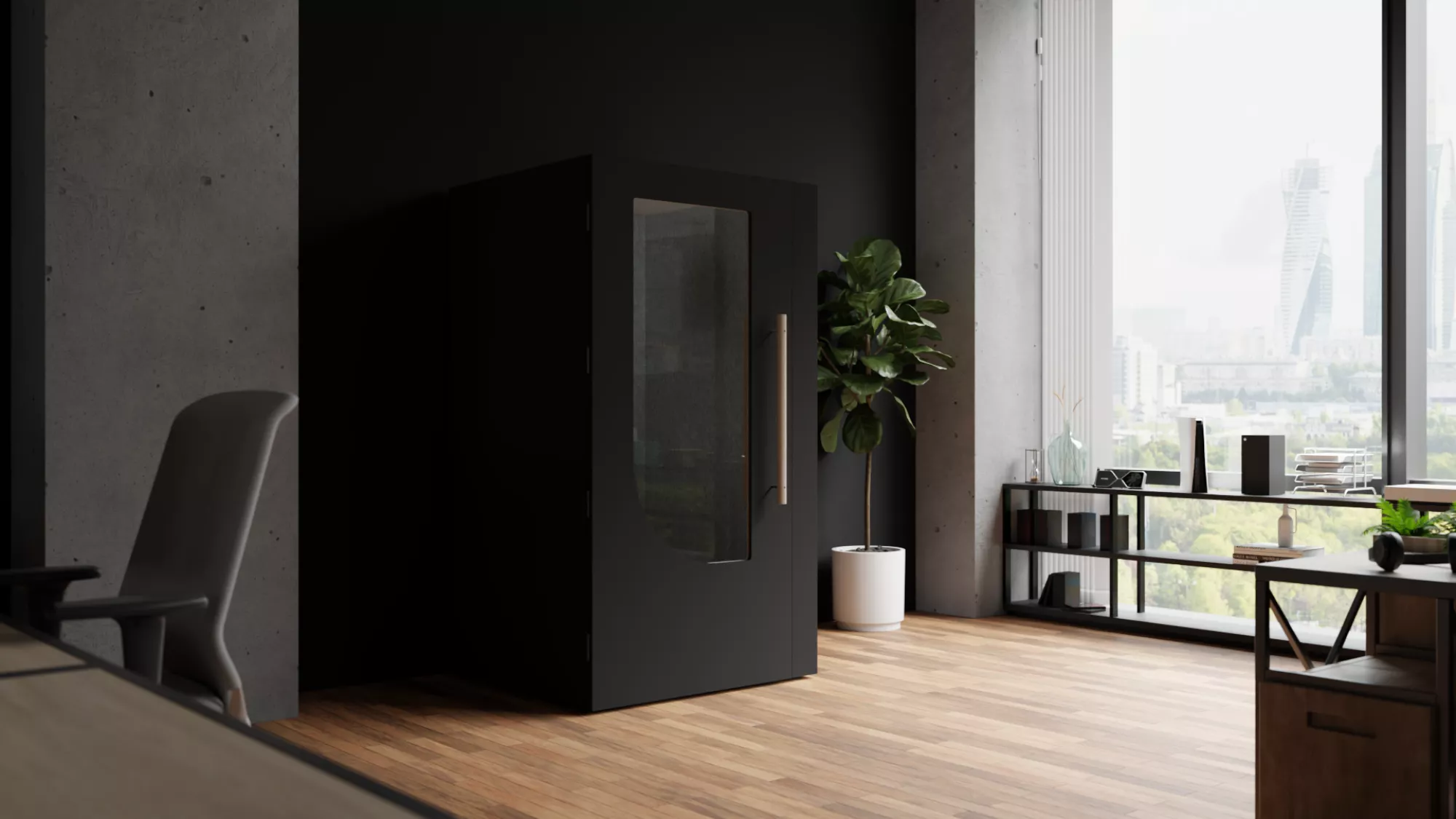

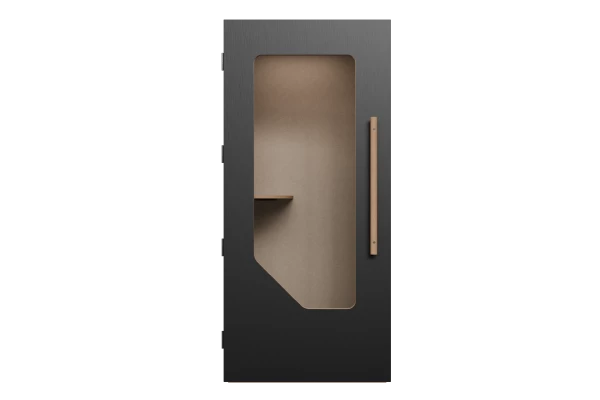

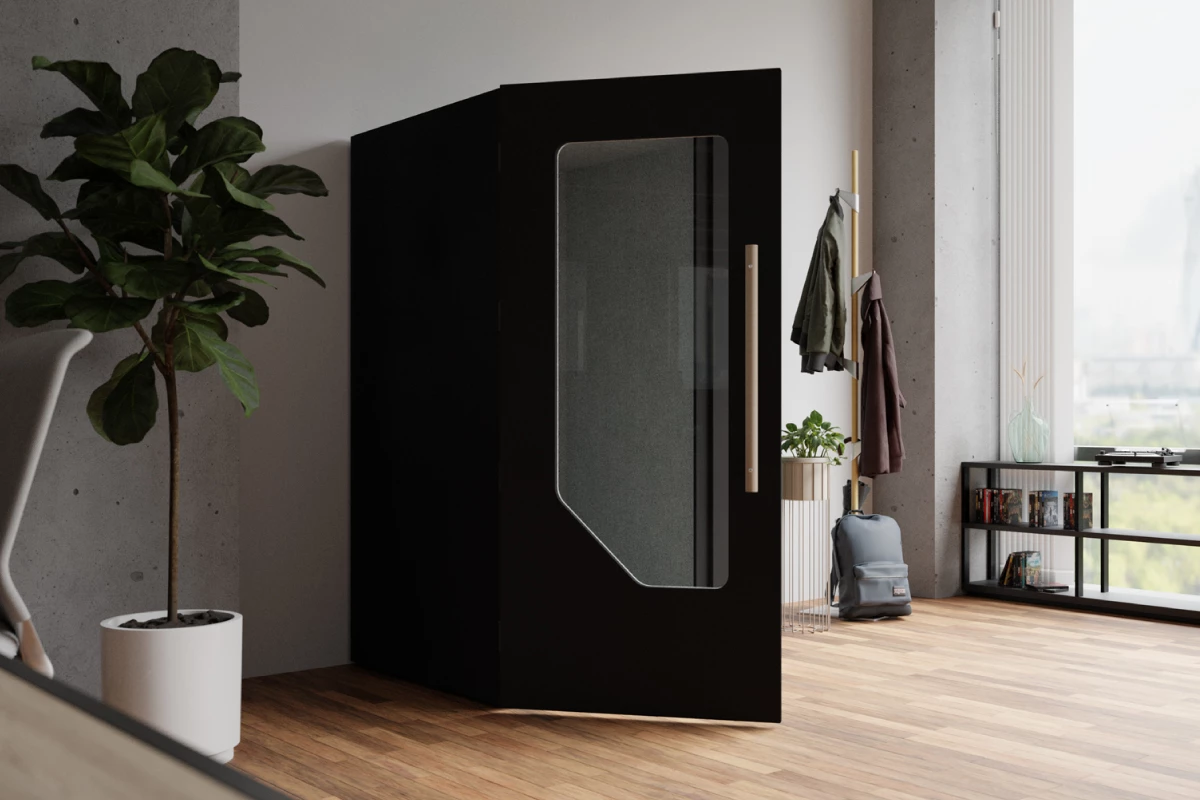

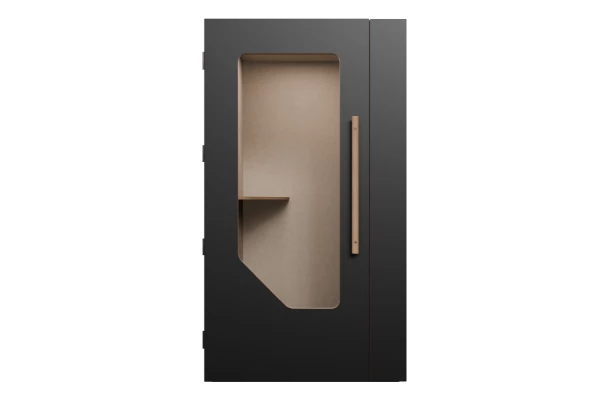

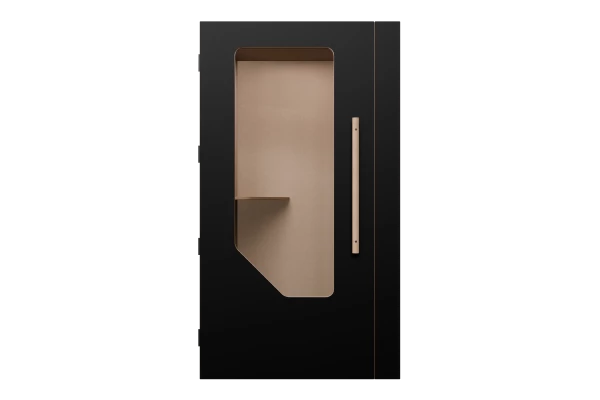

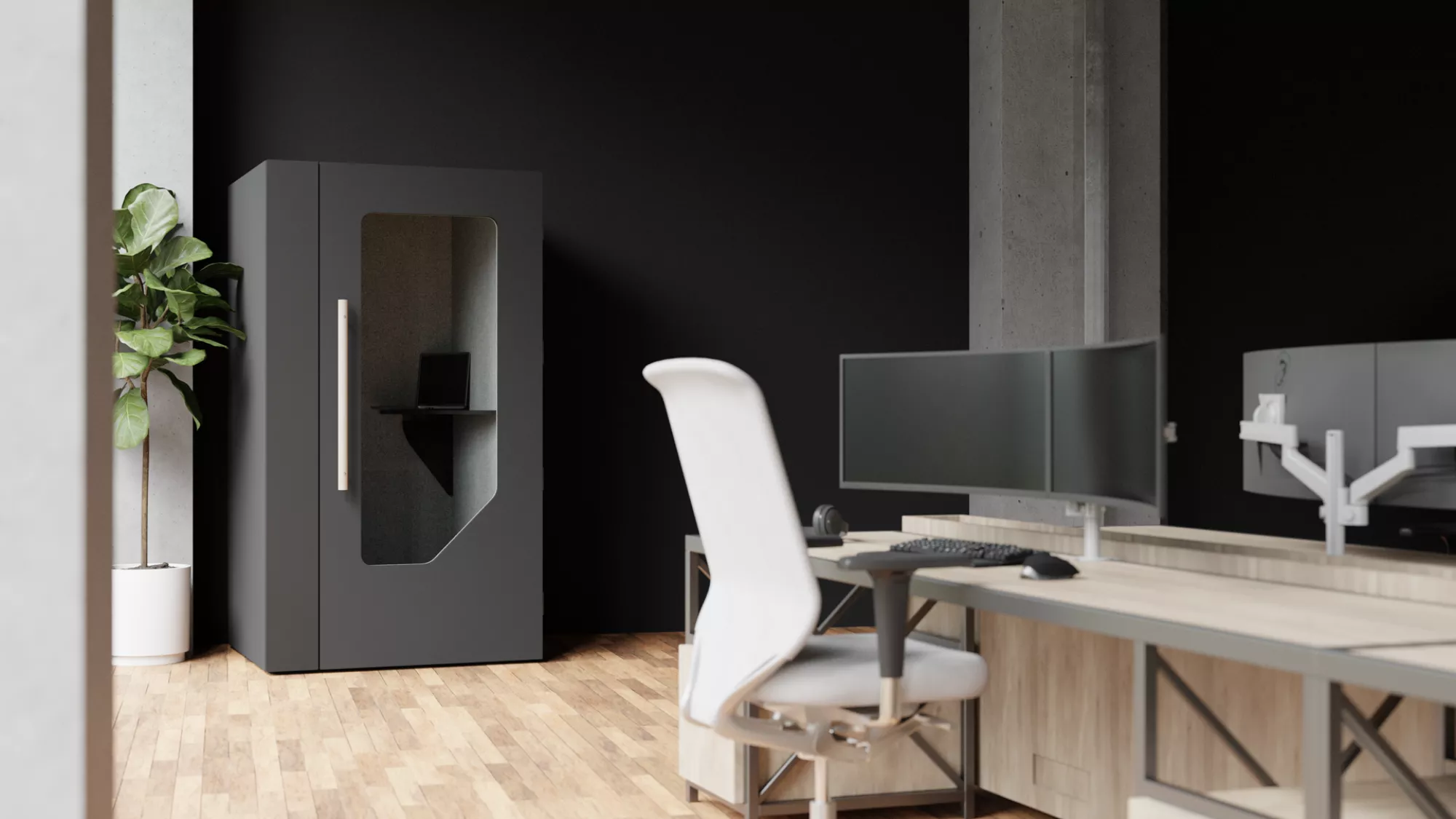

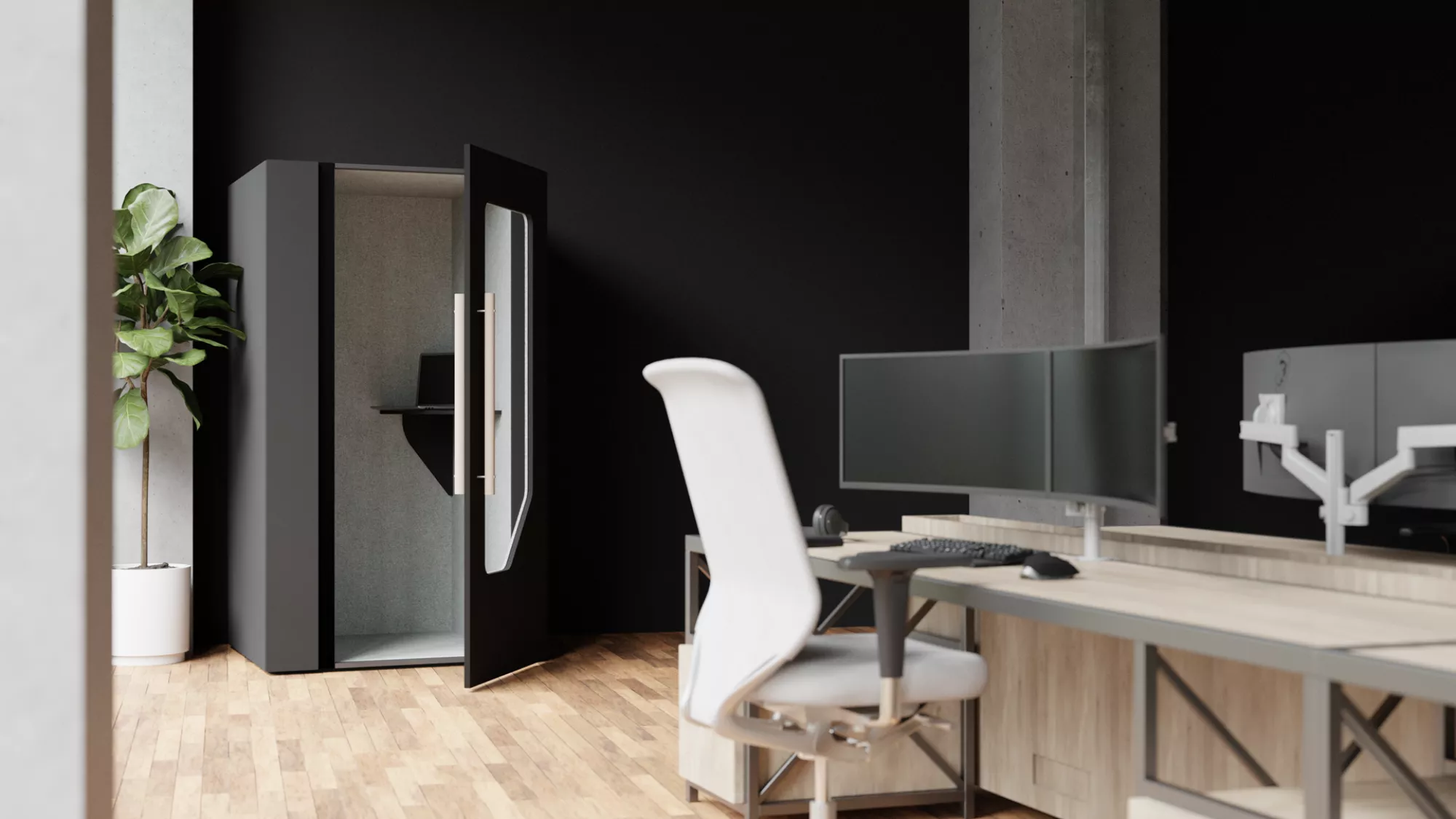

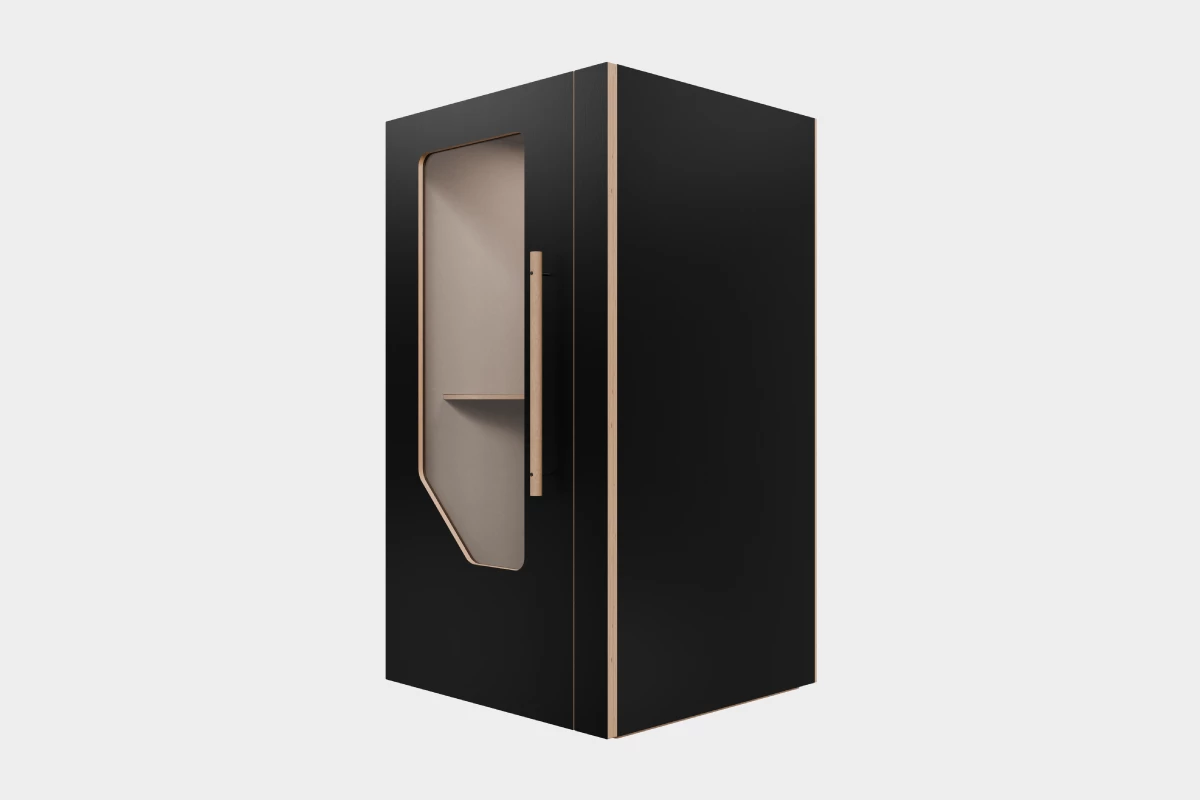

An acoustically controlled space ideal for video calling and phone calls in open offices. The Classic Booth uses the XFrame kit-of-parts to create a generous quiet space with unique interior exposed frame.

The Classic Booth is the perfect spot to tuck away for extend online meetings or when you need a break from your desk to get work done.

Classic Booth Materials:

Modular Frame and Lining core: Forrest Stewardship Council (FSC) certified untreated Australian Origin Hoop Pine (Araucaria Cunninghamii) plywood in 9.5mm, 12.5mm and 16mm thicknesses (for AU/NZ customers). Forrest Stewardship Council (FSC) certified untreated Latvian/Estonian Origin Birch plywood in 9mm and 12mm thicknesses (for UK/EU customers).
Primary Linings Finishes: Formica Laminex 0.7mm Australian manufactured high-pressure laminate (HPL) in SuperMatte and AbsoluteMatte or, Eggar manufactured 0.8mm high pressure laminate (for AU/NZ customers).
Acoustic Linings: Autex Cube semi-rigid 6mm and 12mm 100% polyester fibre (PET) acoustic panels with minimum 60% recycled content (Group 1 fire rated).

NB. Specification may vary by region. Please confirm with XFrame at time of purchase.

Standard Specifications

Frame: 9mm + 12mm FSC E0 Plantation Hoop or Birch Plywood Insulation: 50-70mm Autex Industries AAB Insulation or Terra Lana Wool-Blend

Insulation Door: 18mm or 24mm HPL on plywood (colour matched to linings) with 6mm inset Acrylic, and colour matched PET internal lining, finished with Tasmanian Oak or Oak handles.

Floor: 2x 18mm E0 structural pine-plywood layers with lift-off Carpet (colour matched on request – black as standard).

Linings: 12mm or 18mm lift-off pre-finished exterior side linings (contact re-seller for regional availability). Option for external clip-off PET acoustic panels. All internal linings are min. 9mm PET. Black/Grey/Beige as standard. Custom on request.

Electrical: Twin 80mm 240v fans, motion sensor, adjustable LED spotlight and twin GPO with USB-C charging.

Critical Dimensions: 175kg net weight | 1150mm deep, 2135mm high, 1200mm wide. NB. specifications subject to change via region. Please confirm with reseller.

Classic Booth Product Summary

Download

Classic Booth Assembly Instructions

Here for when it’s time to assemble yours.

Download

Environmental Statement

Understand what materials make up your XFrame office product.

Download

Low Carbon, Low Impact.

We take our climate responsibility seriously. XFrame uses carbon zero certified Autex™ Acoustic recycled sheet products for linings, and locally sourced Hoop Pine (for South Pacific customers) to create the modular framing parts. XFrame products are always fabricated in the country they purchased.

Circularity inside-out.

Our office products are designed to be easily reconfigured and redeployed. Precision cut FSC timber components form a standardised, stable frame across our range of products. Acoustic material is held within the frame using unique compression fixings, eliminating the need for nasty adhesives and allowing parts to be easily replace in case of damage or when you feel like a change of style and colour.

Make it yours.

The classic booth is made from our patented kit of modular parts. This makes it easy to customise the finishes to best suit yours, or your customers unique brand aesthetic. Get in touch with XFrame's design team.
