Mini Booth

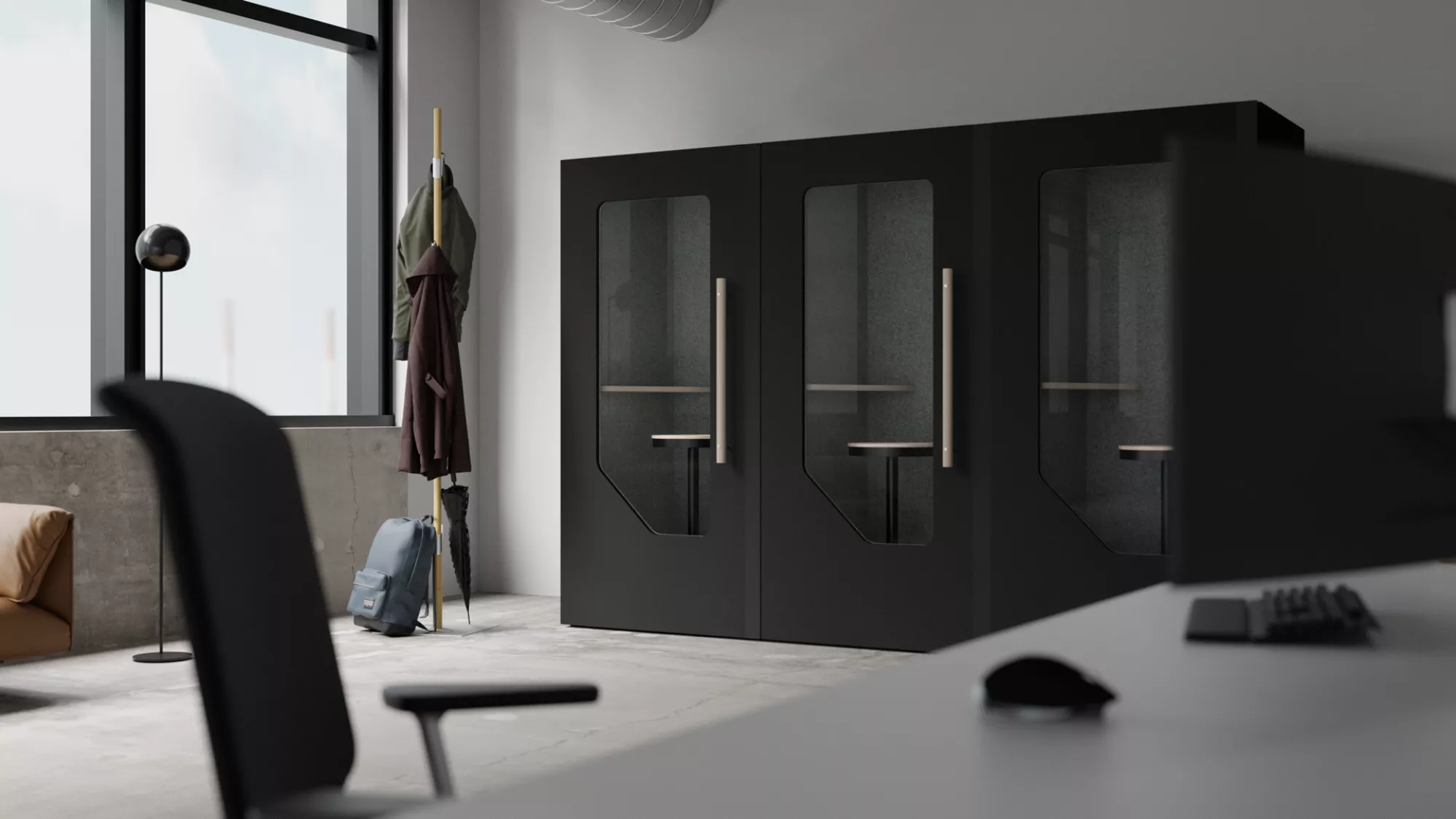

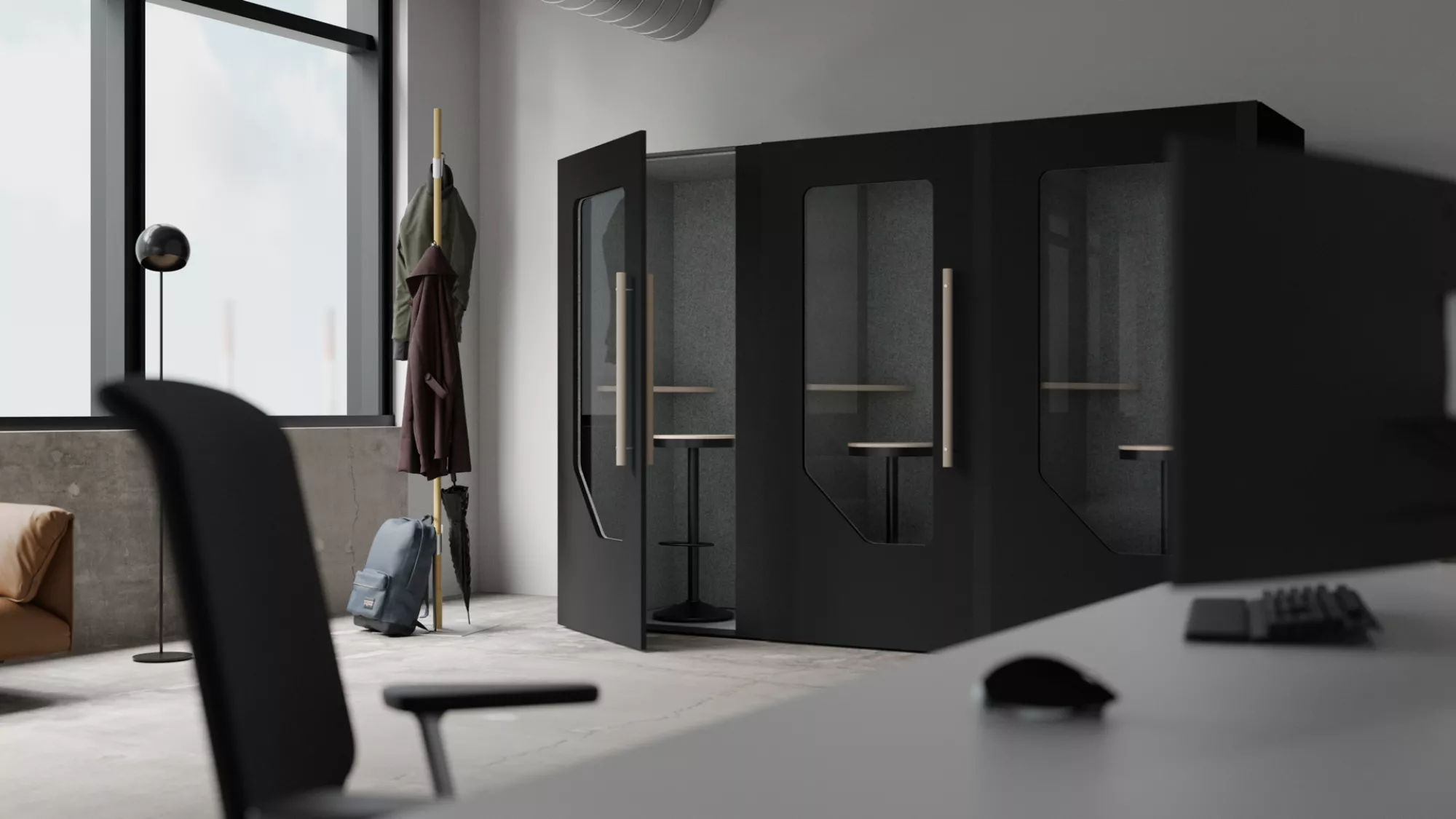

An acoustically controlled space ideal for busy offices that are short on space. XMini uses the adaptable kit of XFrame parts to create a snug mini-booth perfect for chaining together or fitting amongst an already established workspace.

The XFrame Mini Booth has been designed to fit efficiently in and around the superstructure of the office space and take advantage of previously underutilized floor space. Another advantage of the Mini's compact footprint is that it can be easily set-up in difficult to access office spaces.

Mini Booth Product Summary

Find product dimensions, weight and configuration options.

Download

Environmental Statement

Understand what materials make up your XFrame office product.

Download

Standard Specifications

Frame: 9mm + 12mm FSC E0 Plantation Hoop or Birch Plywood Insulation: 50-70mm Autex Industries AAB Insulation or Terra Lana Wool-Blend Insulation

Door: 18mm or 24mm HPL on plywood (colour matched to linings) with 6mm inset Acrylic, and colour matched PET internal lining, finished with Tasmanian Oak or Oak handles.

Floor: 2x 18mm E0 structural pine-plywood layers with lift-off Carpet (colour matched on request – black as standard).

Linings: 12mm or 18mm lift-off pre-finished exterior side linings (contact re-seller for regional availability). Option for external clip-off PET acoustic panels. All internal linings are min. 9mm PET. Black/Grey/Beige as standard. Custom on request.

Electrical: Twin 80mm 240v fans, motion sensor, adjustable LED spotlight and twin GPO with USB-C charging.

Critical Dimensions: 750mm x 720mm interior clear-space. 990mm x 780mm exterior foot-print.

NB. specifications subject to change via region. Please confirm with reseller.

Circularity inside-out.

Our office products are designed to be easily reconfigured and redeployed. Precision cut Forrest Stewardship Council Certified timber components form a standardised, stable frame across our range of products. Acoustic material is held within the frame using unique compression fixings, eliminating the need for adhesives and allowing parts to be easily replace in case of damage.
