Level 8, Westralia 2
Speculative Suites.
Overview
Level 8 in the Westralia 2 building in Perth, Western Australia is an 850m2 office fit out designed by Woods Bagot that aims to establish a new benchmark for design and sustainability in speculative suites.
Leveraging the XFrame system Woods Bagot carefully crafted a series of meeting and office spaces designed to adapt to future tenants needs. The XFrame spaces are fully demountable and through sophisticated detailed design coordination limit the quantity of custom and non-interchangeable components required.

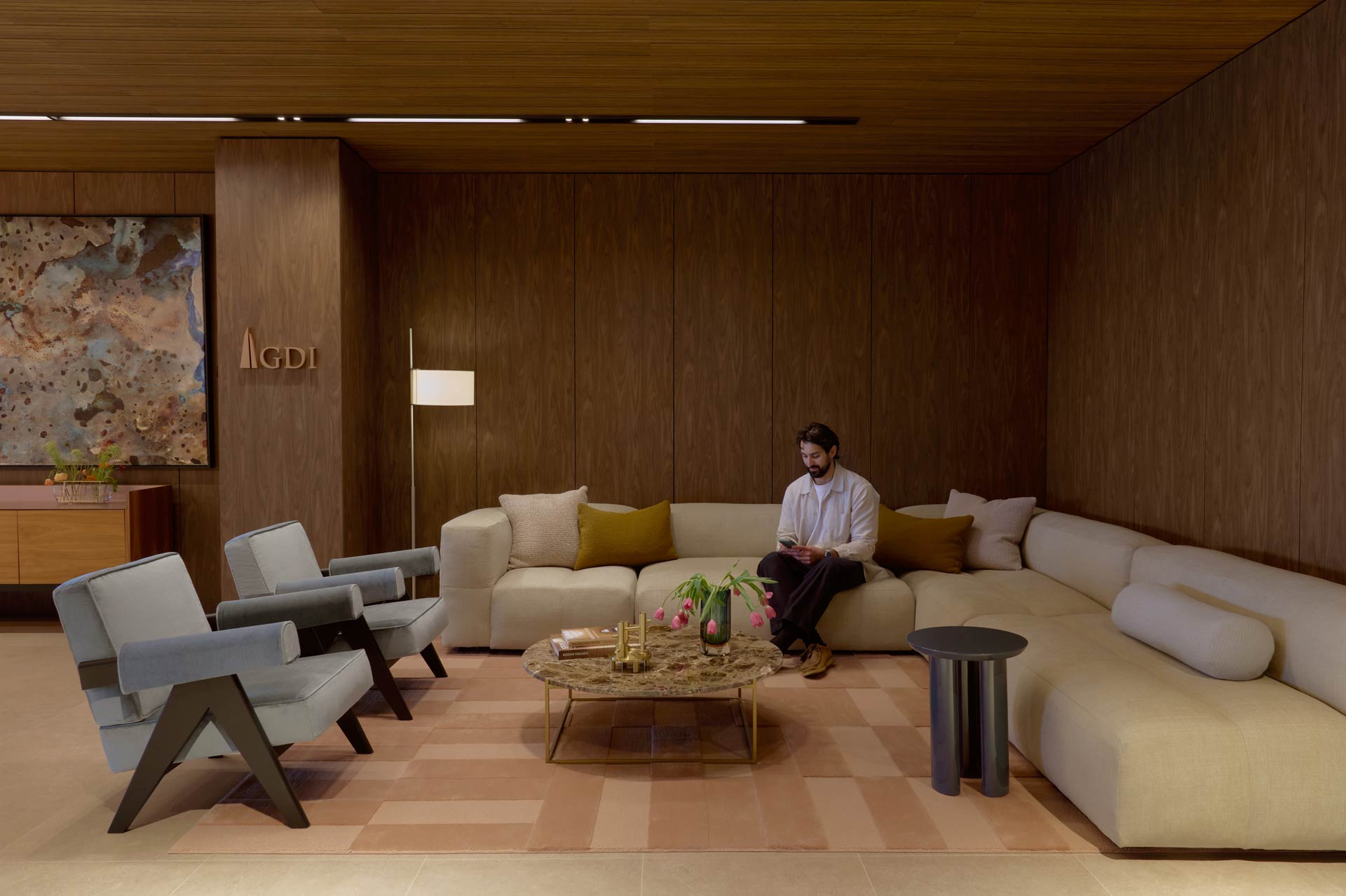

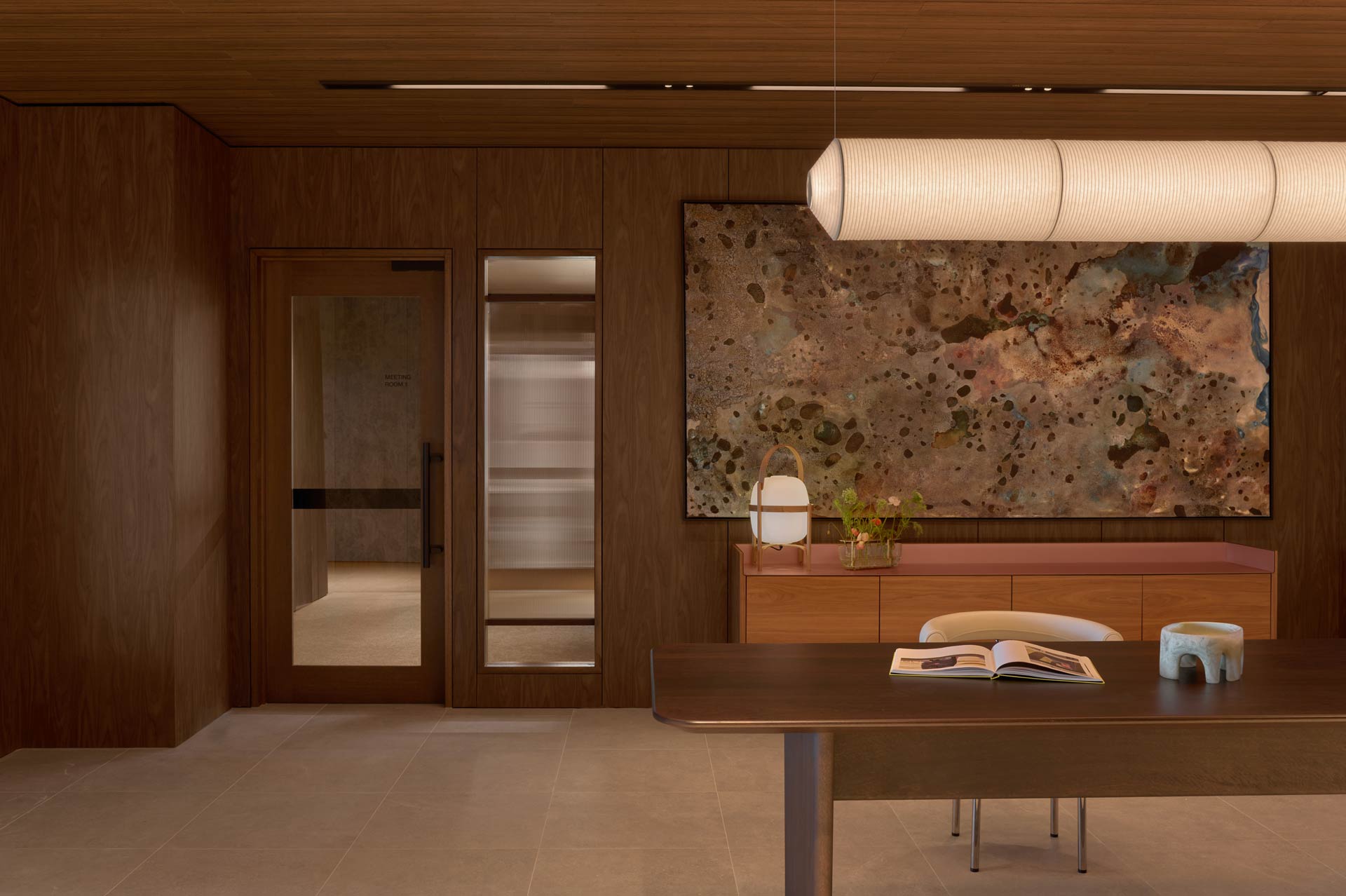

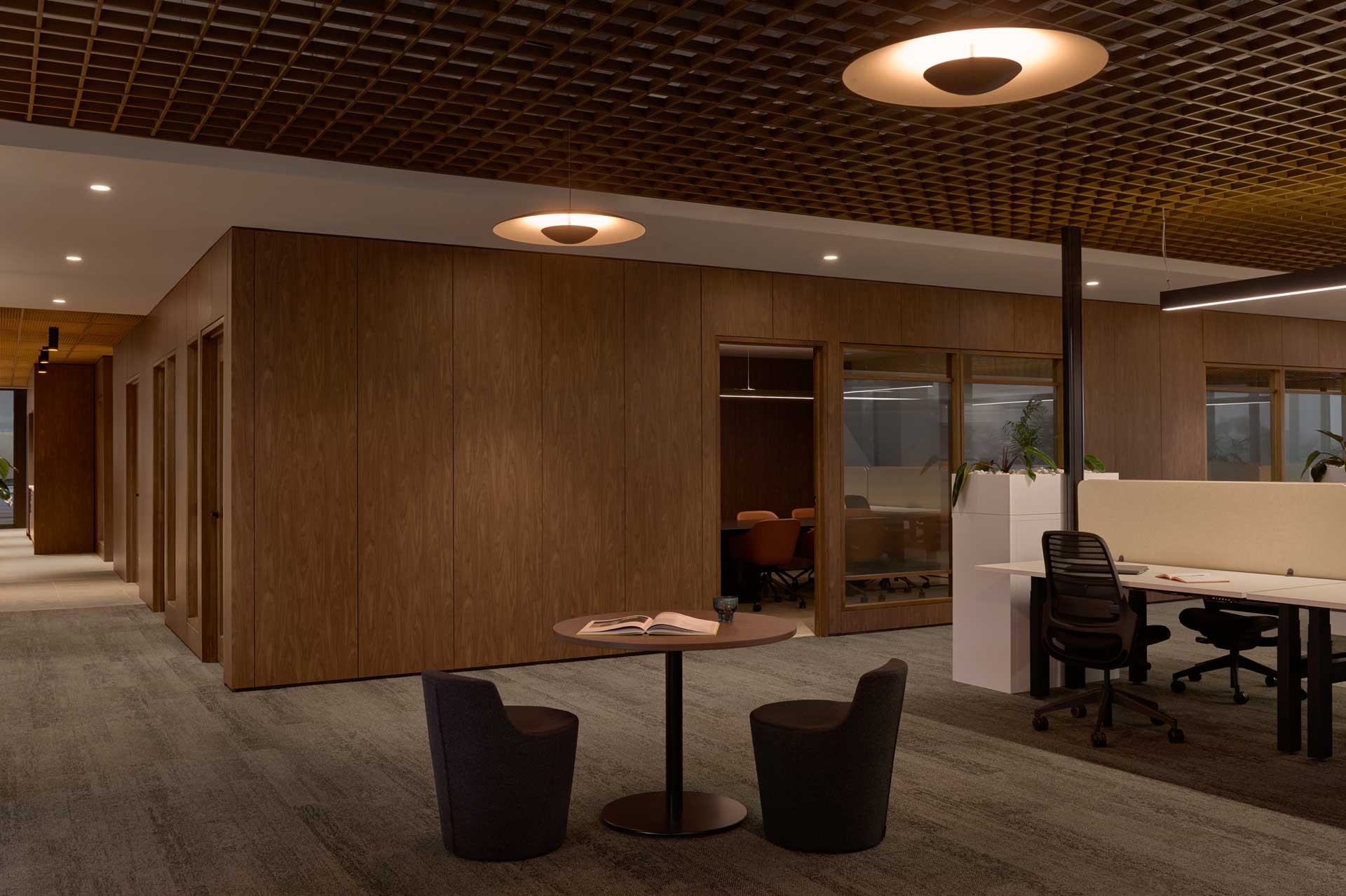

XFrame demountable wall, ceiling and lining systems wrap around the lift core, forming meeting spaces, creating an entrance lobby, and acting to separate front and back-of-house.
Client:
Opra / Woods Bagot (Perth)
Category:
Partition Systems
Region:
Australia
Date:
Oct 31, 2025
Installers:
OPEN 4 / Haus Built
Suppliers:
Burnie Timbers / Autex
Logistics:
CASPL
No items found.
Project Specifications
- 2700mm high-free standing demountable wall panels with internal false ceiling systems at 2500mm
- Customised 1200mm wide demountable glazing panels (in 1200mm x 2700mm) structural frames
- 18mm of demountable free-standing walls to close-off corridor space
- Rw47 rated wall systems
- Integrated (flush-mounted) whiteboards into demountable wall lining system
- Duel layer 12mm clip-on/clip-off PET ceiling system (12mm PET with negative reveal and a 12mm air gap)
- Range of structural roof spans to suit room sizes
Finishes
- Laminex Walnut Sepia (Absolute Grain - True Scale)
- Autex Cube Savoye (12mm) Acoustic Treatments / PET Wall Linings
- Stained Tasmanian Oak (Solid) TImber Door and Window Jambs
- 12.38mm Laminated Acoustic Glazing with reeded glass inserts and timber transoms
- Integrated flush mounted magnetic ceramic whiteboards
"XFrame system used at WS2 Level 8 presents a well-considered balance of design, sustainability, and functionality. It integrates seamlessly into the workspace, supports the client’s environmental objectives, and was delivered with commendable service...This project allowed us to completely reimagine how we approach commercial interiors..."
Ethan Trang, Interior Design Leader at Woods Bagot (Perth)
