6'x8'

6'x8' Size & Dimensions

Specificiations

Material Specifications

XFrame panels made from untreated structurally rated and plantation harvested Canadian spruce/fir timbers formed into plywood meeting CSA O151-17 (R2022).
Phenol formaldehyde resins used in production of plywood meets emission standards equivalent to E0.

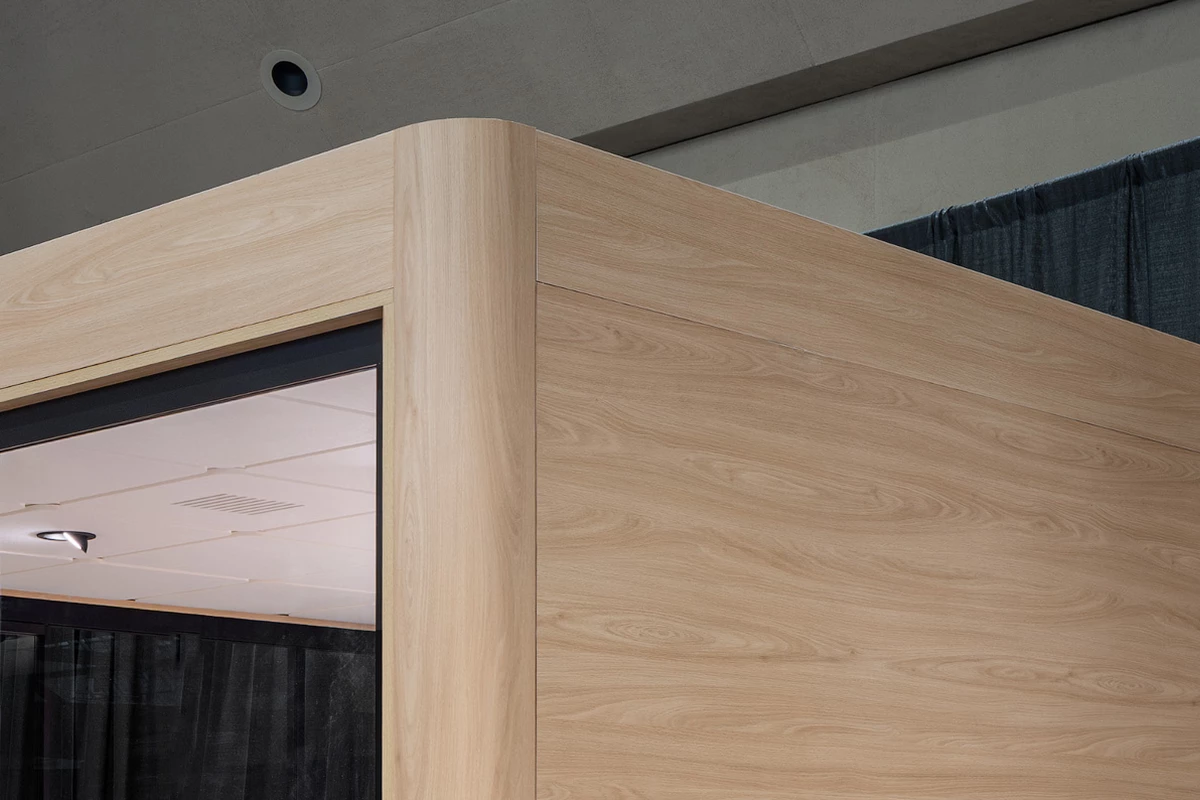

Laminate and veneer linings subject to specification. Typically ¾ inch Tafisa Decorative Panels (TFL) formed from 100% recycled and recovered wood feedstock (Particle Board). Laminate Decorative Panels tested to ASTM E-83 meet Class C as standard.
12mm (1/2 inch) acoustic finishes and extent subject to project specification. Typically Turf, Hush or Autex PET fixed to substrate using ReadyClip mounting hardware. PET Panels tested to ASTM E-83 meet Class A requirements.
FSC / Declare / Country of Origin Specification available on request at time or order and subject to availability.
Cavity insulation subject to project specification. Typically UltraTouch® R13 Recycled Denim Insulation.

Glazed Specifications

Subject to project budget and design requirements.
Typically 12mm (1/2 inch) tempered glazing in an aluminium suite of the clients choosing.
Option for timber framed windows / doors on request to matching glass thickness and sizing.

Low-Carbon Circularity

XFrame rooms unlock spatial flexibility through a circular kit-of-parts.
Adapt, grow, and flex, without emissions.

Learn more

Freedom of Design

XFrame spaces are designed to be effortlessly integrated into a broader architectural pallet. This is circularity and modularity, without design compromise.

XFrame spaces are uniquely capable of being fully integrated into an architectural specification. Leveraging XFrame’s supply chain linings, glazing, lighting, and furniture can be customised to match a wider fitout’s styling. Such freedom allows customers to achieve a cohesive look and feel across their portfolios.

Made Local

Your spaces are made locally via XFrame’s extensive distributed manufacturing network. Local supply means short lead-times, reduced manufacturing and distribution emissions, and the guarantee of long-term service/support.

XFrame spaces will always be made in the region of purchase, using local materials and local labour. We partner with established nation-wide installers who will assist you in stewarding the XFrame space for years to come.

Explore by range:

Contact XFrame for your enquiries about our Room-in-Rooms.

Enquire about our rooms
